90° Elbow Forged - 1/2 in Male JIC 37° Flare x 1/2 in Male O-Ring Boss

90° Elbow Forged - 1/2 in Male JIC 37° Flare x 1/2 in Male O-Ring Boss

PB-6801-08-08-NWO-FG

$10.59
$10.59
Sale Sold out

For wholesale pricing, please call (609) 200-0142.

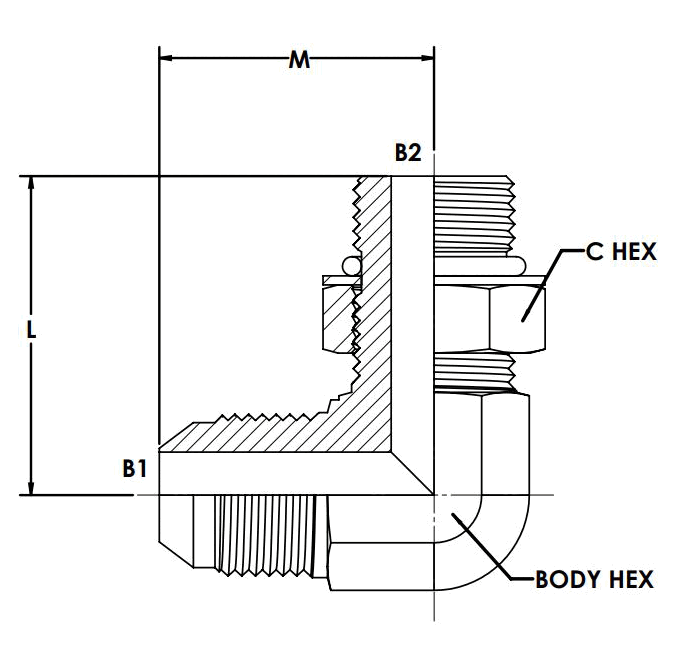

6801 Forge Series SAE J514 070220 90° Elbow Male JIC Thread 37° Flare Seal by Male SAE BOSS Thread O-ring Seal Hydraulic Fitting

THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 3/4-16
THREAD B1 DRILL IN 0.391
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE 3/4-16
THREAD B2 DRILL IN 0.391
THREAD B2 SPECIFICATION SAE J514
BODY HEX IN 0.750
C HEX 1 IN 0.875
OVERALL LENGTH L IN 1.450
CENTERLINE LENGTH M IN 1.250
SHAPE 90 DEGREE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT LBS 0.248
MAXIMUM DYNAMIC PRESSURE PSI 6,000
