90° Elbow Forged - 1/2 in Male JIC 37° Flare x 5/8 in Male O-Ring Boss
90° Elbow Forged - 1/2 in Male JIC 37° Flare x 5/8 in Male O-Ring Boss
SKU:PB-6801-08-10-NWO-FG
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
/
per
For wholesale pricing, please call (609) 200-0142.
Couldn't load pickup availability

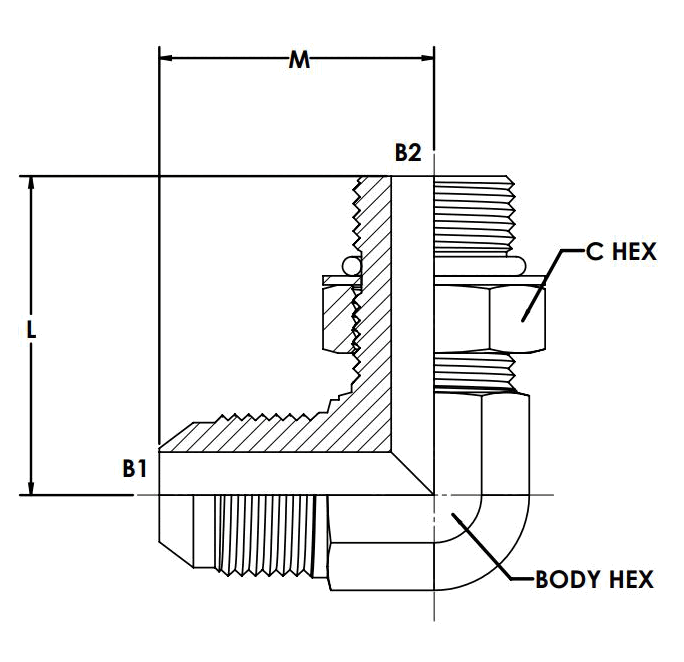

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.700 |
| CENTERLINE LENGTH M IN | 1.330 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.352 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
