90° Elbow Forged - 1 in Male JIC 37° Flare x 1 in Male O-Ring Boss
90° Elbow Forged - 1 in Male JIC 37° Flare x 1 in Male O-Ring Boss
SKU:PB-6801-16-16-NWO-FG
Regular price
$28.89
Regular price
Sale price
$28.89
Unit price
per
For wholesale pricing, please call (609) 200-0142.
Couldn't load pickup availability

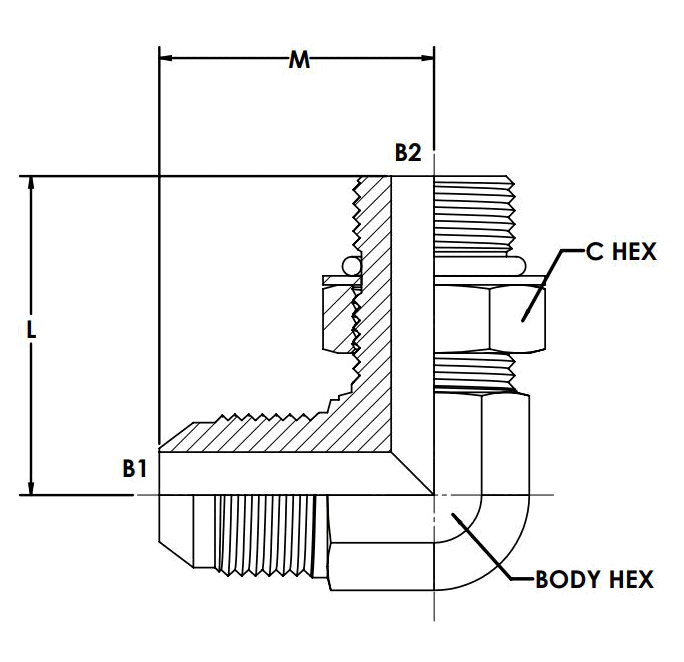

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 2.050 |
| CENTERLINE LENGTH M IN | 1.810 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.884 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
