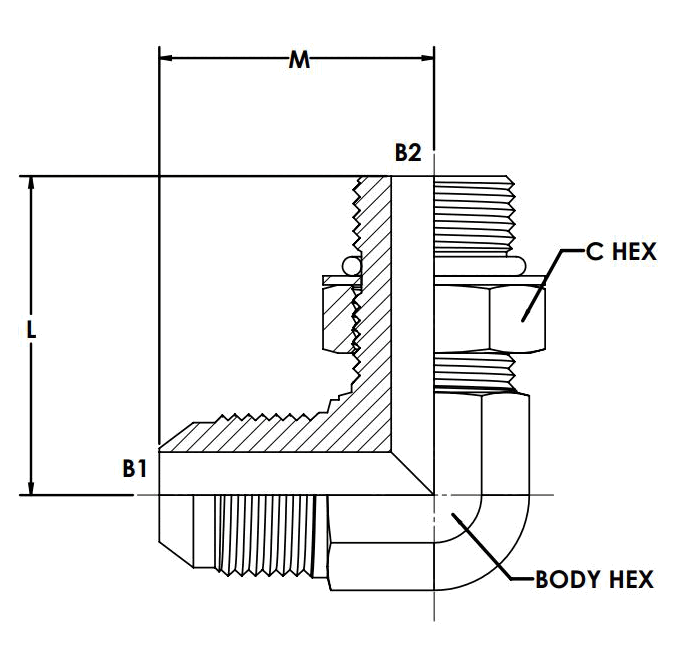

90° Elbow Forged - 3/8 in Male JIC 37° Flare x 1/2 in Male O-Ring Boss
90° Elbow Forged - 3/8 in Male JIC 37° Flare x 1/2 in Male O-Ring Boss
SKU:PB-6801-06-08-NWO-FG
Regular price
$10.59
Regular price
Sale price
$10.59
Unit price
per
For wholesale pricing, please call (609) 200-0142.
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.450 |
| CENTERLINE LENGTH M IN | 1.140 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.226 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
