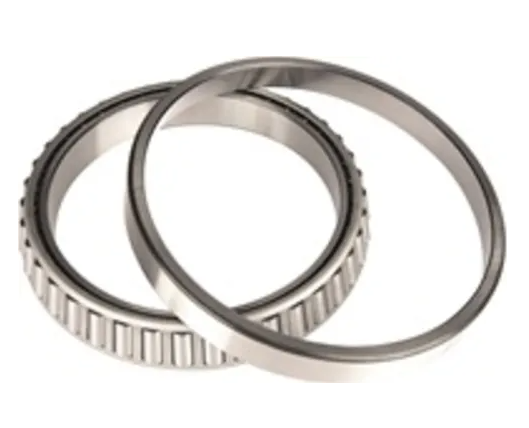

Timken Tapered Roller Bearing Multi-Bearing Kit - Set 415-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - Set 415-900SA

PB-SET-415-900SA

$109.98
$109.98
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
3.5 in
88.9 mm
OUTSIDE DIAMETER
6 in
152.4 mm
WIDTH T (INCH)
 1.5625 in
WIDTH T (MM)
 39.688 mm
INNER RING WIDTH B (INCH)
 1.5625 in
INNER RING WIDTH B (MM)
 39.688 mm
OUTER RING WIDTH C (INCH)
 1.1875 in
OUTER RING WIDTH C (MM)
 30.162 mm
MAX SHAFT FILLET RADIUS R (MM)
 6.4 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.25 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 66700
DYNAMIC LOAD RATING C1 (N)
 297000
STATIC LOAD RATING CO (N)
 404000
STATIC LOAD RATING CO (LBS)
 90800
FACTOR K
 1.45
FACTOR E
 0.4
FACTOR Y
 1.49
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
