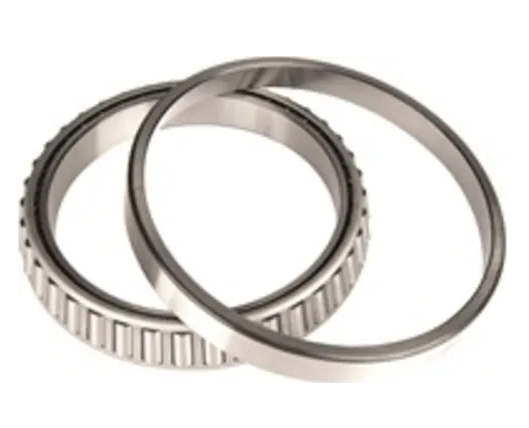

Timken Tapered Roller Bearings Multi-Bearings Kit -Set 427-900SA

Timken Tapered Roller Bearings Multi-Bearings Kit -Set 427-900SA

PB-SET-427-900SA

$74.98
$74.98
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
2.625 in
66.675 mm
OUTSIDE DIAMETER
4.8125 in
122.238 mm
WIDTH T (INCH)
 1.5 in
WIDTH T (MM)
 38.1 mm
INNER RING WIDTH B (INCH)
 1.51 in
INNER RING WIDTH B (MM)
 38.354 mm
OUTER RING WIDTH C (INCH)
 1.17 in
OUTER RING WIDTH C (MM)
 29.718 mm
MAX SHAFT FILLET RADIUS R (MM)
 3.5 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.14 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 60000
DYNAMIC LOAD RATING C1 (N)
 267000
STATIC LOAD RATING CO (LBS)
 62700
STATIC LOAD RATING CO (N)
 279000
FACTOR K
 1.73
FACTOR E
 0.34
FACTOR Y
 1.78
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
