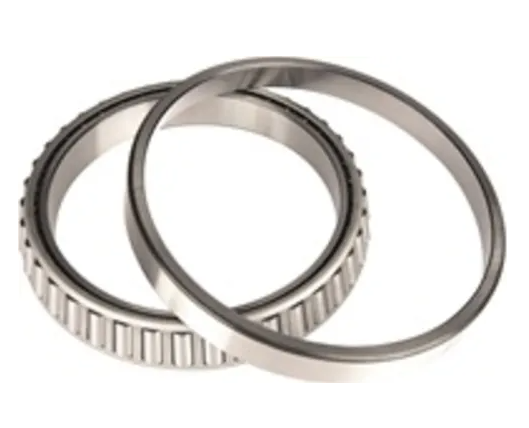

Timken Tapered Roller Bearing Multi-Bearing Kit - SET402-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - SET402-900SA

SKU:PB-SET-402-900SA

Regular price $96.89
Regular price Sale price $96.89
Sale Sold out

For wholesale pricing, please call (609) 200-0142.

BORE
3.25 in
82.55 mm
OUTSIDE DIAMETER
5.5115 in
139.992 mm
WIDTH T (INCH)
1.4375 in
WIDTH T (MM)
36.512 mm
INNER RING WIDTH B (INCH)
1.4212 in
INNER RING WIDTH B (MM)
36.098 mm
OUTER RING WIDTH C (INCH)
1.125 in
OUTER RING WIDTH C (MM)
28.575 mm
MAX SHAFT FILLET RADIUS R (MM)
6.8 mm
MAX SHAFT FILLET RADIUS R (INCH)
0.27 in
MAX HOUSING FILLET RADIUS R (MM)
3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
0.13 in
DYNAMIC LOAD RATING C1 (LBS)
46500
DYNAMIC LOAD RATING C1 (N)
207000
STATIC LOAD RATING CO (LBS)
65400
STATIC LOAD RATING CO (N)
291000
FACTOR K
1.45
FACTOR E
0.4
FACTOR Y
1.49
PRECISION LEVEL
Class 2 (Standard) Tolerance
UNIT SYSTEM
Imperial
