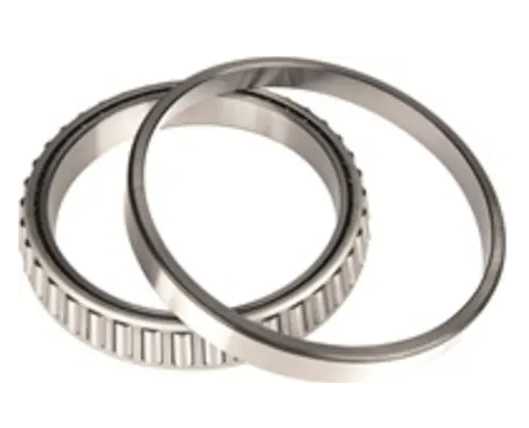

Timken Tapered Roller Bearing Multi-Bearing Kit - SET424-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - SET424-900SA

PB-SET-424-900SA

$113.89
$113.89
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
2.25 in
57.15 mm
OUTSIDE DIAMETER
4.875 in
123.825 mm
WIDTH T (INCH)
 1.5 in
WIDTH T (MM)
 38.1 mm
INNER RING WIDTH B (INCH)
 1.444 in
INNER RING WIDTH B (MM)
 36.678 mm
OUTER RING WIDTH C (INCH)
 1.1875 in
OUTER RING WIDTH C (MM)
 30.162 mm
MAX SHAFT FILLET RADIUS R (MM)
 3.5 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.14 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 50800
DYNAMIC LOAD RATING C1 (N)
 226000
STATIC LOAD RATING CO (LBS)
 55700
STATIC LOAD RATING CO (N)
 248000
FACTOR K
 1.69
FACTOR E
 0.35
FACTOR Y
 1.73
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
