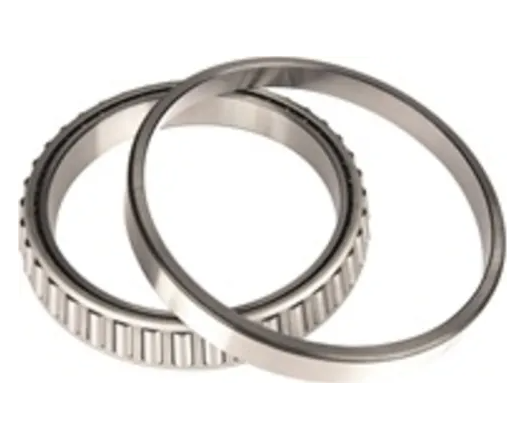

Timken Tapered Roller Bearing Multi-Bearing Kit - SET426-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - SET426-900SA

PB-SET-426-900SA

$113.89
$113.89
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
3 in
76.2 mm
OUTSIDE DIAMETER
5.25 in
133.35 mm
WIDTH T (INCH)
 1.3125 in
WIDTH T (MM)
 33.338 mm
INNER RING WIDTH B (INCH)
 1.3125 in
INNER RING WIDTH B (MM)
 33.338 mm
OUTER RING WIDTH C (INCH)
 1.0313 in
OUTER RING WIDTH C (MM)
 26.195 mm
MAX SHAFT FILLET RADIUS R (MM)
 3.5 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.14 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 48100
DYNAMIC LOAD RATING C1 (N)
 214000
STATIC LOAD RATING CO (LBS)
 58900
STATIC LOAD RATING CO (N)
 262000
FACTOR K
 1.44
FACTOR E
 0.4
FACTOR Y
 1.48
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
