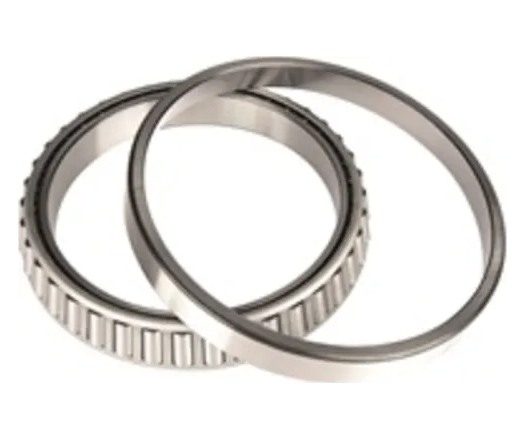

Timken Tapered Roller Bearing Multi-Bearing Kit - SET429-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - SET429-900SA

PB-SET-429-900SA

$109.89
$109.89
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
3.75 in
95.25 mm
OUTSIDE DIAMETER
6 in
152.4 mm
WIDTH T (INCH)
 1.5625 in
WIDTH T (MM)
 39.688 mm
INNER RING WIDTH B (INCH)
 1.43 in
INNER RING WIDTH B (MM)
 36.322 mm
OUTER RING WIDTH C (INCH)
 1.1875 in
OUTER RING WIDTH C (MM)
 30.162 mm
MAX SHAFT FILLET RADIUS R (MM)
 5 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.2 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 48600
DYNAMIC LOAD RATING C1 (N)
 216000
STATIC LOAD RATING CO (LBS)
 71600
STATIC LOAD RATING CO (N)
 319000
FACTOR K
 1.32
FACTOR E
 0.44
FACTOR Y
 1.36
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
