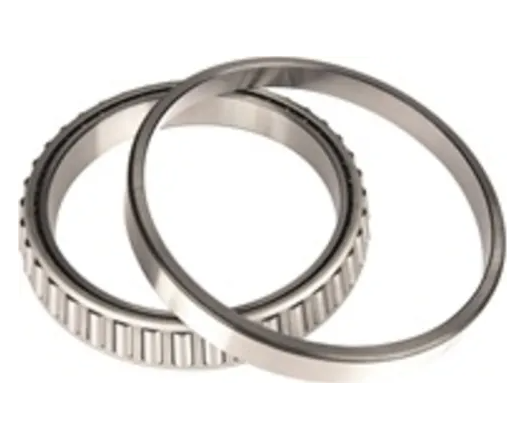

Timken Tapered Roller Bearing Multi-Bearing Kit - SET430-900SA

Timken Tapered Roller Bearing Multi-Bearing Kit - SET430-900SA

PB-SET-430-900SA

$98.89
$98.89
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
3.25 in
82.55 mm
OUTSIDE DIAMETER
5.5115 in
139.992 mm
WIDTH T (INCH)
 1.4375 in
WIDTH T (MM)
 36.512 mm
INNER RING WIDTH B (INCH)
 1.4212 in
INNER RING WIDTH B (MM)
 36.098 mm
OUTER RING WIDTH C (INCH)
 1.125 in
OUTER RING WIDTH C (MM)
 28.575 mm
MAX SHAFT FILLET RADIUS R (MM)
 3.5 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.14 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 46500
DYNAMIC LOAD RATING C1 (N)
 207000
STATIC LOAD RATING CO (LBS)
 65400
STATIC LOAD RATING CO (N)
 291000
FACTOR K
 1.45
FACTOR E
 0.4
FACTOR Y
 1.49
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
