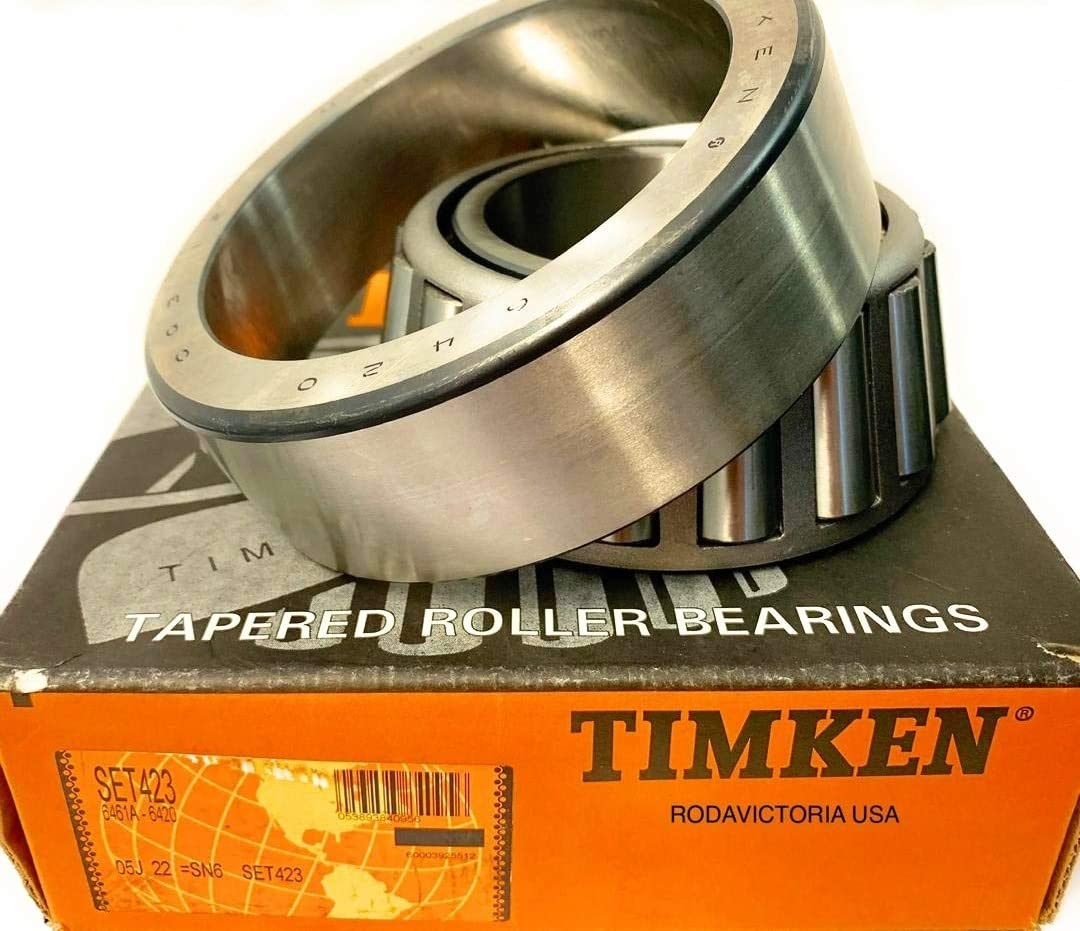

Timken Tapered Roller Bearing SET423

Timken Tapered Roller Bearing SET423

PB-SET423-900SA

$189.98
$189.98
Sale Sold out

For wholesale pricing, please call (609) 200-0142.
BORE
3 in
76.2 mm
OUTSIDE DIAMETER
5.875 in
149.225 mm
WIDTH T (INCH)
 2.125 in
WIDTH T (MM)
 53.975 mm
INNER RING WIDTH B (INCH)
 2.135 in
INNER RING WIDTH B (MM)
 54.229 mm
OUTER RING WIDTH C (INCH)
 1.75 in
OUTER RING WIDTH C (MM)
 44.45 mm
MAX SHAFT FILLET RADIUS R (MM)
 9.7 mm
MAX SHAFT FILLET RADIUS R (INCH)
 0.38 in
MAX HOUSING FILLET RADIUS R (MM)
 3.3 mm
MAX HOUSING FILLET RADIUS R (INCH)
 0.13 in
DYNAMIC LOAD RATING C1 (LBS)
 92400
DYNAMIC LOAD RATING C1 (N)
 411000
STATIC LOAD RATING CO (LBS)
 104000
STATIC LOAD RATING CO (N)
 463000
FACTOR K
 1.61
FACTOR E
 0.36
FACTOR Y
 1.66
PRECISION LEVEL
 Class 2 (Standard) Tolerance
UNIT SYSTEM
 Imperial
